Chlorine absorption system
AUTOMATIC CHLORINE TONNER LEAK ABSORPTION
- Chlorine has manifold diverse uses. As its usage and handling rise, the danger associated with it also rises. As such a potential risk involves a severe emergency that may suddenly and unexpectedly occur, such eventualities should be anticipated and proper methods should be devised in advance to meet them. Nowadays industrial safety and protection control Personnel are very serious about accident-prone poisonous gas leakage, particularly chlorine leakage. Cl2 gas LEAKS · The most common leaks in chlorine Tonner or Cylinder are the leaks around valves and take-off copper tube connectors. The other possible, severe emergency that may occur, is either due to 1. Breakdown of valves or 2. Any puncture on the wall of the Tonner. The common leaks at valves or copper tubing can be met with standard emergency kits, but the others will be grave and may suddenly and expectedly happen. It can be extensive and heavy. LATSHA TECHNOLOGIES has developed an automatic chlorine scrubber to control and arrest the heavy leaks from the chlorine tonner based on the recommendations of 1. Chlorine Institute Inc., U.S.A 2. Bureau of Indian Standards 3. National Safety Council 4. Alkali manufacture’s Association of India DESCRIPTION · The package system consists of 1. FRP Gas Hood [s] 2. Chlorine gas suction blower [s] 3. Absorption tower 4. Absorption tank 5. Absorption circulation pump [s] 6. Interconnection pipes, fittings, instruments, valves, etc., 7. Chlorine Gas Leak Detector with sensor [s] 8. Control Panel Proper care has been taken in the selection of the material of the construction of equipment so that they are corrosion resistant. PROCESS · If the leak is uncontrollable, the FRP gas hood is placed over the tonner manually to cover the leaky tonner. The outlet nozzle of the hood is connected to blower suction by a flexible PVC hose and/or PVC/FRP piping. The hood prevents the leaky chlorine gas to spread into the atmosphere. Alternatively, as a precautionary method, the Hood / Hoods can always be placed over the tonner [s] which is /are in operation. The absorbent pumps and suction Blower / Fans are started [Manually or in Automatic mode]. The Blower sucks the leaked chlorine gas and directs it to the absorption tower, where chlorine meets the counter currently the absorbent solution. The chlorine gas is absorbed by absorbent and the air is vented at the top of the tower. As this is absorption accompanied by a chemical reaction, there will be only nil or negligible traces of chlorine in the air vent. The process of starting the Absorbent Circulation Pump and Blower can be done automatically based on the signals from the Chlorine Gas Leak Detector sensor[s] located close to the Tonners and in Chlorination Plant. A sufficient quantity of absorbent is continuously circulated in the tower from the absorbent tank till the tonner gets emptied. The spent absorbent, after completion of all chlorine will contain only sodium chloride, sodium hypochlorite, or sodium sulfate salts which are innocuous. This can be disposed of without any pollution problem. ammonia, chlorine absorption system, chlorine scrubber, water treatment plant
Chlorine Leak Detector
- Chlorine gas Leak Detection/chlorine absorption system, automatic chlorine scrubber Chlorine gas safety precautions with Alarm comprise versatile sampling systems that support detection at a particular point/location by sensing chlorine gas leak in ambient air and providing alarm contact. For easy handling, it features contacts for operating automatic valves/ Auto Chlorine Gas Leak Absorption System chlorine scrubber ammonia, water treatment plant
CHLORINE SAFETY DEVICES
CHLORINE EMERGENCY KIT B
- Chlorine Cylinder Leak Arresting Kits B comprise tools and appliances including studs, tie rods hoods, gaskets, yokes, mild steel channels, screws, clamps, spanners, and wooden pegs, pins, and others that are made available in standard sizes. We offer separate kits for the handling of cylinders and tonners with supporting gadgets designed for controlling/stopping leakages from the fusible plug, valves, sidewalls of cylinders & containers that are used in the handling of chlorine. chlorine scrubber, ammonia Scrubber, chlorine absorption system, automatic chlorine scrubber water treatment plant
CHLORINE EMEREGNCY KIT A
The Chlorine Emergency Kit “A” is manufactured to the design specifications as per Chlorine Institute standards Emergency Kit “A” contains devices to stop leaks at the valve, fusible plug, and in the side walls of chlorine 100 & 150 lb. cylinders
Chlorine Recovery Vessel with Wheels
Chlorine Cylinders Recovery Vessel
- The LATSHA Chlorine Recovery Vessel is designed for use with the standard Baby Chlorine Cylinder 80/100Liters in chlorine service only. The Chlorine Recovery Vessel is designed to completely contain a leaking chlorine cylinder. A
Chlorine Ton Secondary Containment Vessel is ideal for large-volume users of gas and liquid chemicals.
The Ton Secondary Containment Vessel is built to accommodate a standard one-ton chlorine cylinder. The vessel comes with a 2-bolt chain-drive closure and the following additional standard features:
- Interior Rollers
- Vacuum/Pressure Gauge
- Interior Flex Line with Yoke and Yoke Adapter
- Chemical Supply Ball Valve with Monel Body and Hastelloy Trim
- Electronic Scale
- Manual Brass Valves
- Fail-Safe Valve Assembly
- Pressure Relief Valve
- Cylinder Loading System
- Pressure Switch
.jpg/:/cr=t:23.86%25,l:0%25,w:100%25,h:52.27%25/rs=w:600,h:300,cg:true)
Chloro Guard Valve
Chloro Guard is a simple, highly effective remote automatic shut down system for emergency control of toxic gas systems
Safety aceesories

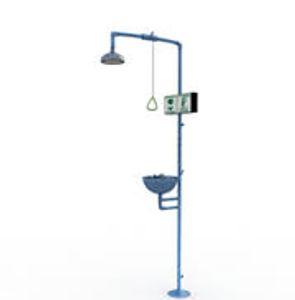

Emergency eye wash washer
- Emergency eyewash washer Safety Showers works as first aid safety equipment and assist in minimizing injuries in event of an accident/exposure to hazardous gases. Suitable for both indoor and outdoor installation, these come in stainless steel finish with epoxy coating to provide for long-lasting usage support. chlorine scrubber ,Ammonia Scrubber , chlorine absorption system, water treatment plant automatic chlorine scrubber

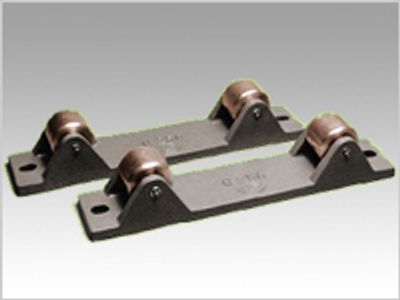

Tonner Roller Support
- Tonner Roller Support Function: To hold the Ton Containers securely in Place and also to facilitate the Positioning of Ton Containers, so that the inbuilt Valves [Gas side and Liquid Side] lie one over the other vertically chlorine scrubber ammonia, water treatment plant, chlorine absorption system automatic chlorine scrubber
Lifting Beam with Adjustable Hook
- Lifting Beam with Adjustable Hook Features and Be · Bright yellow enamel paint finish · Center lift model LBCL is standard (pictured) · Low clearance model and forklift available as options · Total weight approx. 105 lbs. · 4000 lbs. lifting capacity · Manufactured to ASME B30.20 specifications · Strong, all-steel, welded construction with 1" thick steel hooksLB - Pin is centered - 2-1/2" on 5" beam water treatment plant chlorine absorption system automatic chlorine scrubber
Chlorine Hadling kit

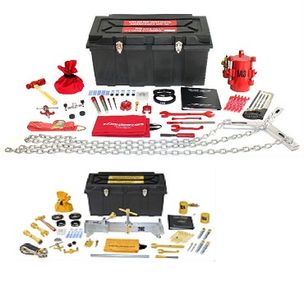

Chlorine Institute Emergency kits
- Emergency chlorine kits 1. Kit A- for 80 Kgs and 100 Kgs Cylinder 2. Kit B – for ton containers Chlorine Institute Emergency kits are designed to contain most leaks that may be encountered in chlorine shipping containers. The following kits are available for recovery vessels are available. chlorine absorption system water treatment plant automatic chlorine scrubber

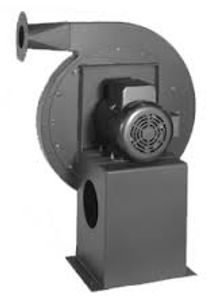

Centifugal Blower
- MS FRP BLOWER for automatic chlorine scrubber Capacity as per Customer Requirement chlorine scrubber Ammonia Scrubber, chlorine absorption system, water treatment plant

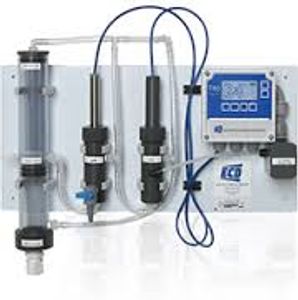

FRC chlorine analyzer
- Monitoring Residual Chlorine in water. water treatment plant chlorine absorption system automatic chlorine scrubber
