CHLORINATION PLANT


Vacuum Feed Gas Chlorinator

Latsha Chlorinator  is cabinet mounted vacuum operated, solution feed type. It is designed for floor mounting,Frame or wall mounting

and incorporates a filter, flush mounted chlorine pressure gauge, are liable vacuum regulator, and an accurate flow-meter, a precise flow control valve, and effective differential regulator, an injector,

and a positive non-return valve. All the components are mounted in a two-tone, gel coated attractive fiber glass cabinet. The vacuum

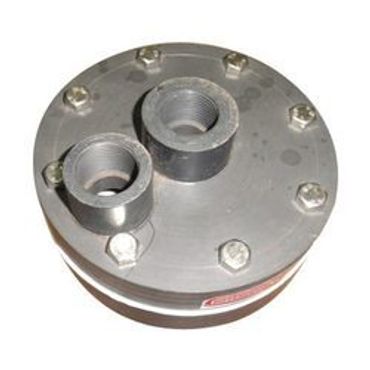

regulator is of an exclusive design, which opens only when the vacuum is generated by the injector. On failure of water to the injector the vacuum regulator closes automatically. D P Regulators are provided only in Capacities of 10 kgs/hr and above. The material of construction of the various components of the Chlorinators are highly resistant to chlorine gas , like PVC, HDPE, Teflon (PTFE), Monel, Silver, Carbon steel and fiber glass. The simple yet advanced design of the various components reduce the maintenance to a bare minimum. All the components are easily accessible from the rear of the cabinet for periodic Inspection and Maintenance. The Chlorination system  is pre-assembled and is fully tested under simulated operating condition. This saves time and money during installation and helps towards a smooth start-up.

Chlorine uses   for producing safe drinking water. Chlorinated compounds are used mostly for sanitation, pulp bleaching, disinfectants, and textile processing....



Products Range and Capacities

Cylinder Mounted Chlorinators :Range 0.25 to 10Kg/hr  Frame/Wall Mounted Chlorinator: Range 0.25 to 10Kg/hr Floor Mounted Chlorinator : Range 0.25 to 250Kg/hr Gravity Feed Gas Chlorinator : Range 0.25 to 10Kg/hr Chlorination System chlorine gas


Cylinder Mounted Gas Chlorinator


Cylinder Mounted Chlorinator  is developed for providing working as safe and space saving chlorinator comprising flow control valve, vacuum regulator, rotameter and yoke clamp for direct connection to the cylinder. Further, for optimum performance support, it is also provided with injector assembly vent, vacuum tubing of 5 meters and a gas filter. Operation Principles: chlorine gas Chlorination System

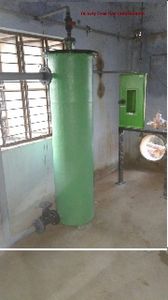

Gravity feed Chlorinator


Absorption Tower Type Chlorinator

Absorption Tower type Chlorinator is a solution feed chlorinator.  Chlorine gas is mixed with water to form chlorine solution in the packed column.  The tower is packed with raschig rings to increase the area for chlorine water mixing.  Chlorine solution is taken to the point of application.  Since the solution is discharged at atmospheric pressure the dosing point must be gravity or zero back pressure. Chlorination System


Evaporator

Electrically Heat Evaporator

 Liquid chlorine from the tonner/Cylinders chlorine gas Chlorination System chlorinator is transferred to the inner chamber of the vaporizer due to tonner pressure. This chamber is immersed in a water bath, which is heated by 3 Nos. heaters. The water to the water bath is supplied via pipe which is controlled by an on-line solenoid Valve, which opens once the water level falls below the preset level and closes once the water reaches the higher preset level. The temperature of the water is controlled by a thermostat, which switches on or off depending on the temperature reached, by the water bath. Cathodic protection is provided where, DC current is passed through sacrificing carbon anodes to protect, the Heat Exchanger and Hot water tank surface exposed to water from Galvanic Corrosion.


Steam Heated Vaporizer

Chlorine Vaporizer can also be powered by steam. Steam is abundantly available in Paper & Pulp Mills, where steam is used to evaporate liquid Chlorine to form gas Chlorine. A temperature controller opens or closes a steam valve, thus maintaining a constant temperature in the steam chamber

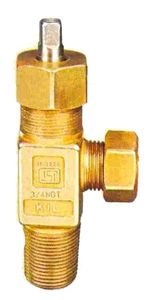

Chorine Valve

  Chorine Valve  · Meets IS 3224:2002, each production lot inspected and certified by Bureau of Indian Standard (BIS).  · Approved by PESO Nagpur chlorine gas chlorinator Chlorination System

Chlorinator Accessories

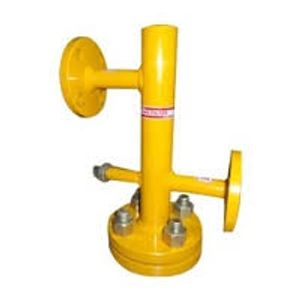

Gas Filter

Gas Filter  Proper operation of chlorine gas dosing equipment in chlorine gas systems can be ensured only if they are protected against impurities. With the chlorine gas filter, a product is available that removes impurities such as particles and chlorine condensates from the in flowing chlorine gas. Inside the chlorine gas filter, there is a Fiber filter element, on the surface of which the impurities are deposited when the gas flows through the filter. chlorinator Chlorination System

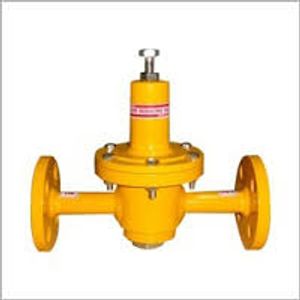

Pressure Reducing Valve

Pressure Reducing Valve (PRV) is a spring loaded diaphragm-actuated valve. Normal set pressure of a prv is 1-2 kgs/cm2 for an upstream Pressure of 9-13 kgs/cm2depending on ambient temperature. The prv provides superheat for the chlorine vapour thereby reducing the chance of reliquification in pipeline downstrem of prv. If the prv is by-passed the super heat provided by rv will be lost. Besides, chlorine gas metered at the flowmeter/rotameter will be more precise. If the flow of chlorine is metered at reduced pressure. Use prv in conjuction with gas filter to avoid impurties getting stuck in the seat of the prv. chlorinator Chlorination System

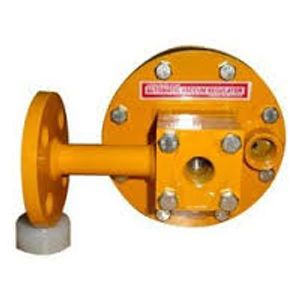

Automatic vacuum Regulator

Automatic vacuum Regulator  Automatic Vacuum Regulator is the most important part of the Chlorinator. Automatic Vacuum Regulator [AVR] is designed to close at pressure and open at vacuum (normally). So, without vacuum it should not allow chlorine gas to the injector of the Chlorinator. The logic is that, whenever there is loss of vacuum in the Injector due to no flow or low pressure of motive water, Pipe breakages in Vacuum line, the regulator does not allow the flow of hazardous Chlorine gas, making this system foolproof in terms of safety an operation Chlorination System

LATSHA :  Electro Chlorination System can generate Sodium Hypochlorite from Seawater or salt water ,

Electro chlorination

ELECTRO CHLORINATOR



Electro chlorination is a simple and proven technology to convert ordinary salt water [or brine or seawater] into Sodium Hypochlorite by means of Electrolysis. It is produced and applied on -site. The device which uses this technology is named as Electro Chlorinator or Onsite Hypo Generator.

Sodium Hypochlorite is universally accepted for combating slime, algae and other Bio-organisms in Water. The most important aspect of Sodium Hypochlorite usage is its economy effectiveness in killing bio organisms thereby disinfecting water. Electro Chlorinators find application where Chlorine is not readily available or where operation with chlorine is not acceptable. Electro Chlorinators therefore, find application in Drinking Water Treatment, Cooling Water Treatment, Waste Water Treatment, Bleaching, Pharmaceutical formulations and other industrial applications.

The Industries that benefit includes Chemicals & Fertilizers, Refineries, Petrochemicals, Power Stations, Steel Plants, Cement Plants, Pharmaceutical Industries, Pesticide Industries, Food Industries, Dairy Industries, Textiles, Paper & Pulp Industries, Sugar Plants, Municipalities, Corporations, Townships, Water Boards, Theme Parks, Hotels, Apartment Complexes, Aqua culture Units, Bottling Plants, Swimming Pools, Hospitals etc



Latsha Tecnologies market a wide range of Chlorination Equipments and related accessories to cater to the requirement

Depending upon the mode of Operation Electro Chlorinator are classified into two Types namely Batch Production with capacity from 15gms /hr to 500 gms /hr and Continuous Production Electro Chlorinator with capacity ranging from 15 Gms to 10 Kg/hr

Learn More

This is a content preview space you can use to get your audience interested in what you have to say so they can’t wait to learn and read more. Pull out the most interesting detail that appears on the page and write it here.


Calcium hypochlorite

 Calcium hypochlorite is an inorganic compound with formula Ca(ClO)2. It is the main active ingredient of commercial products called bleaching powder, chlorine powder, or chlorinated lime, used for water treatment and as a bleaching agent
